Hi Ken
before hitting activate did you click on apply changes after changing the
parameters. Ramp target is the end of the ramp. This seems to override the
foreground setpoint.
Clemens
On 7/27/2023 11:16 AM, Kenneth Sharp-Knott wrote:
Is anyone familiar with using the temperature ramp feature in EDTE on Bruker
systems? We are specifically running TS3.5.7 in this case. It would appear
that you can set it to increase the temperature in a slow controlled fashion
rather than jumping to specific target temperatures, but it's not working
on our system. I suspect there may be hardware requirements that we don't
have - newer BVT or a chiller.

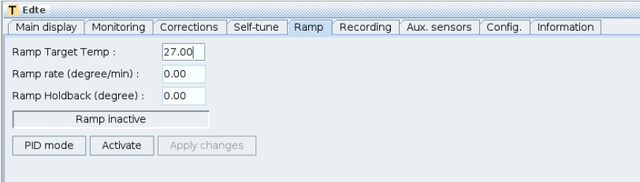

In this example image we obviously need to set a ramp rate and click activate -
but once that is done it doesn't seem to increase power to the heater.
[image.png]
--
Ken Sharp-Knott
Manager of Analytical Services and the NMR Facility
Department of Chemistry
Virginia Tech
(540)267-6502 (Cell)
(540)231-0885 (Office)
--
==========================
==========================
====================
Clemens Anklin Ph.D. Vice President
Bruker BioSpin NMR Applications & Training
15 Fortune Drive NEW Phone: 978-313-5NMR(5667)
Billerica MA 01821 twitter: _at_canklin
http://www.bruker.com
e-mail: clemens.anklin_at_bruker.com<mailto:clemens.anklin_at_bruker.com>
==========================
==========================
====================
-=-=-=-=-=-=-=-=-=-=-=-
